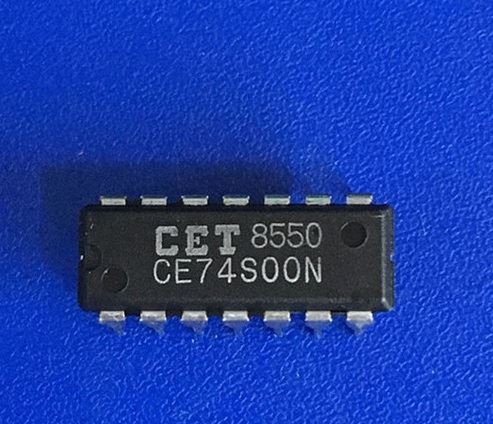

74S00: 14P Quad 2 input NAND Gate
Product Detail
NULL
AED 6.00 +VAT
- SKU: 74S00
- Manufacturer: --
- Stock: Stock check required
- Warranty: Contact us for more details
- Category: 74S SERIES
Stock confirmation required. We will verify availability and confirm before processing.
Buying for a company, school, lab, or repair desk?
Ask for formal quotation, PI, availability confirmation, delivery note, or alternate item suggestion.
*Returns policy depends on product category and condition.
Genuine supplier support
We focus on electronics, tools, test equipment, parts, accessories, and practical product guidance.
Quotation / PI ready
For approval workflows, ask our team for quotation documents, pro forma invoice, and commercial terms.
Delivery coordination
Confirm address, contact, invoice reference, pickup/delivery option, package label, and delivery note.
Service-minded team
For selected products and service requests, our team can help with inspection, repair/service flow, and status updates.
| Logic IC Type | NAND GATE |
| Family | S |
| JESD-30 Code | R-GDIP-T14 |
| Load Capacitance (CL) | 15.0 pF |
| Number of Functions | 4 |
| Number of Inputs | 2.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 9.0 mA |
| Propagation Delay (tpd) | 5.0 ns |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | DUAL |
