JL-003B: 220V Infrared Sensor Switch Smart Delay Switch
- SKU: JL-003B
- Manufacturer: --
- Stock: Stock check required
- Warranty: Contact us for more details
- Category: SENSORS AND MODULES
Genuine supplier support
We focus on electronics, tools, test equipment, parts, accessories, and practical product guidance.
Quotation / PI ready
For approval workflows, ask our team for quotation documents, pro forma invoice, and commercial terms.
Delivery coordination
Confirm address, contact, invoice reference, pickup/delivery option, package label, and delivery note.
Service-minded team
For selected products and service requests, our team can help with inspection, repair/service flow, and status updates.

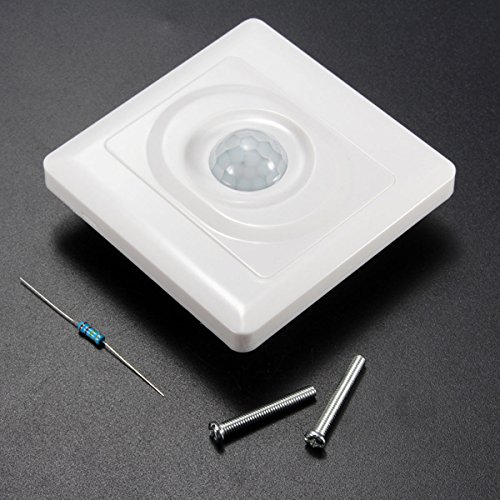

JL-003B 220V Infrared Sensor Switch Smart Delay Switch
Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.
Specification :
Working power : AC 100V-250 V 50/60H
zLoad power : LED40W. Energy saving80W. Incandescent 200W.Fan 50W
Standby power : 0.0088W
Delay time : 15-300second
Illumination : 5LUX-5000LUX
Sensor distance : 6-10m
Sensor angle : 110-140degree
Features :
1. Super saving electricity, power consumption 0.08 degrees per year.
2. Wide working voltage, normally working in100V-250V.
3. Large power, impedance biggest load can reach 200W.
4. Non-contact, simple installationsingle wire system, just like ordinary switch connection.
5. Delay time adjustableJL-003B specific.
6. Sensitivity adjustable, can bright during the day.
7. Strong anti-jamming capacity, more safe and reliable.
