New
PRO'SKIT MT-7063 PoE AND LAN Cable Tester
Price: AED 94.20
- SKU: MT-7063
- Manufacturer: Proskit
- Stock: In Stock
- Warranty: Contact us for more details
- Category: LAN CABLE TESTER/METER
PoE Tester - Midspan/Endspan
Cable Tester - RJ11/RJ12/RJ45
Ideal for testing the live Ethernet cables and determining continuity of network and telephone cables.

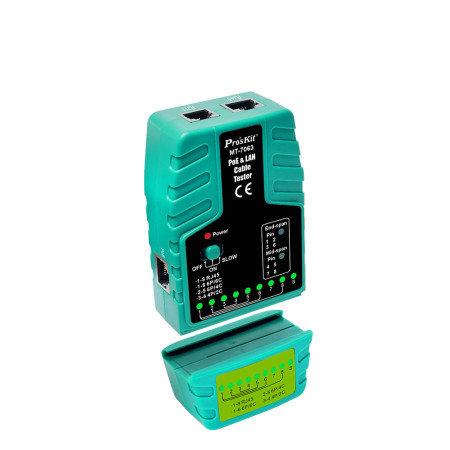

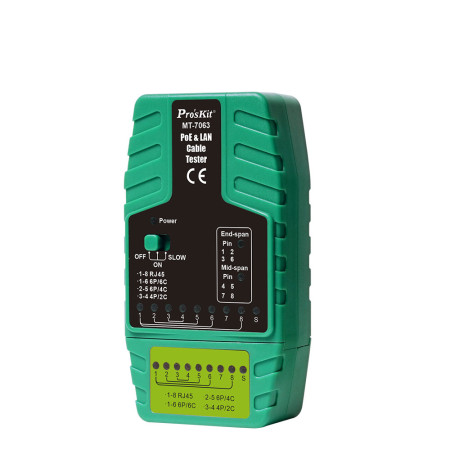

PRO'SKIT MT-7063 PoE AND LAN Cable Tester
PoE Tester
- Easily tests Ethernet network for power over Ethernet existence
- Quickly detects the type of the Power Sourcing Equipment (either Endspan or Midspan)
- MT-7063 is a economy type only for detecting Midspan/Endspan.
- MT-7064 is an advanced type which can easily identify IEEE 802.3 af/at PoE standard and Midspan/Endspan
Cable Tester
- Check the RJ11/RJ12/RJ45 pin to pin cable map
- Automatically runs all tests and checks for continuity, open, short and crossover wire pairs
- Cable mapping up to 300M
| Specifications | MT-7063 | MT-7064 |
| Max. distance of cable map | 300m | |
| Compatible connectors | RJ45(8 pin) & RJ11(6P/6C/4C/2C) & RJ12 & PoE | |
| Cable types tested | RJ45 Lan cable Cat 5、5e、6(UTP/STP) RJ11/12 Telephone Cable Cat 3 (6P/2C/4C/6C) | |
| Cable map indication | 8 LED，Fast/Slow dual speed | |
| Shielded indication | Yes | |
| PoE indication(Master) | Midspan/Endspan | 802.3 af/at PoE standard and Midspan/Endspan |
| Live telecommunication equipment test and router test | Yes | |
| Dimension (L×W×D) | Master：94×66×35 mm , Remote：32×64×34 mm | |
| Battery type | DC 9.0V | |
| Weight | 125g（Not including battery) | |
