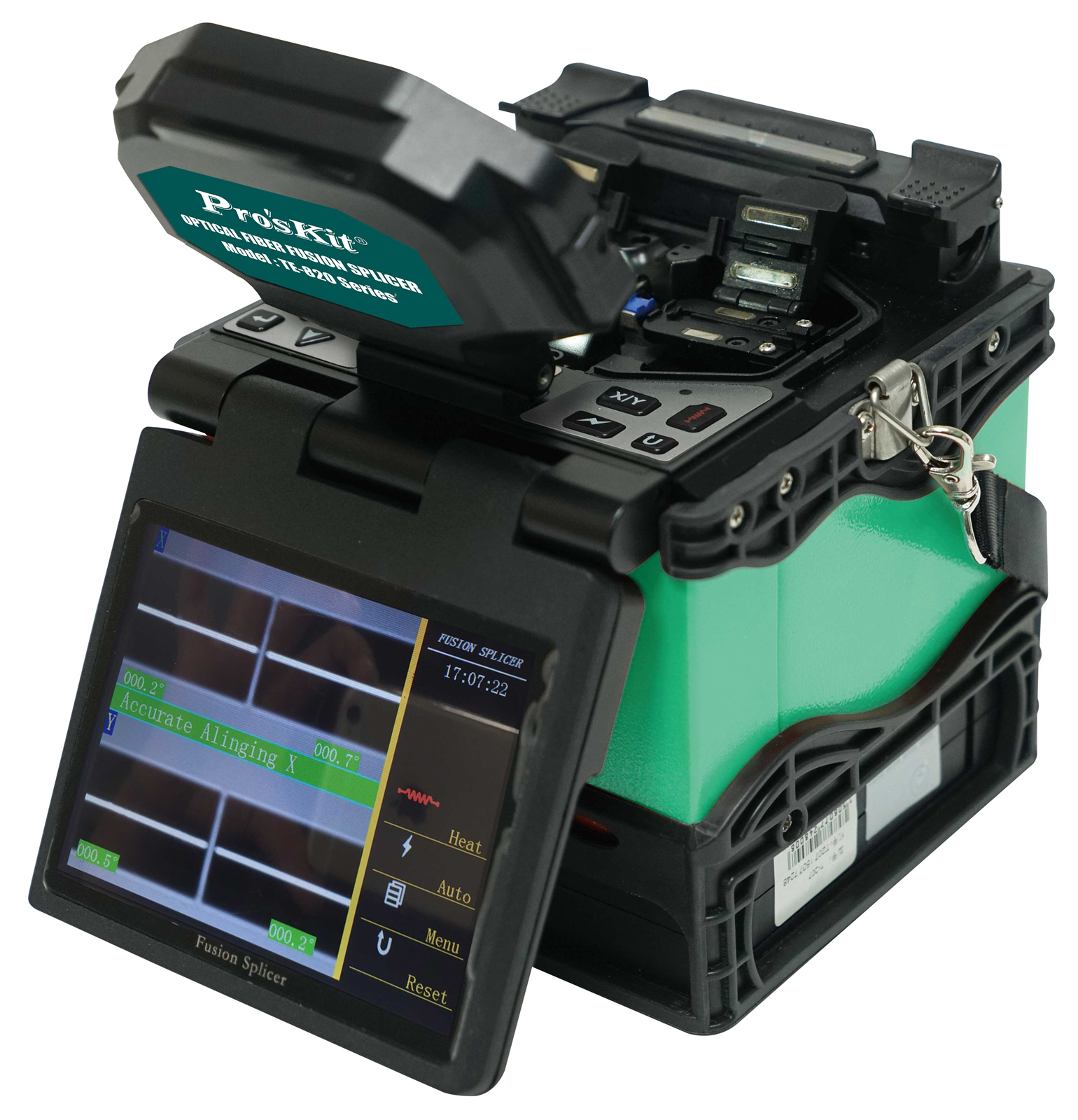

TE-8202F: FIBER OPTIC FUSION SPLICING MACHINE KIT (Optical fiber splicing kit )
Price: AED 13000.00
- SKU: TE-8202F
- Manufacturer: Proskit
- Stock: Contact us for availability
- Warranty: Contact us for more details
- Category: Fiber Optic Products

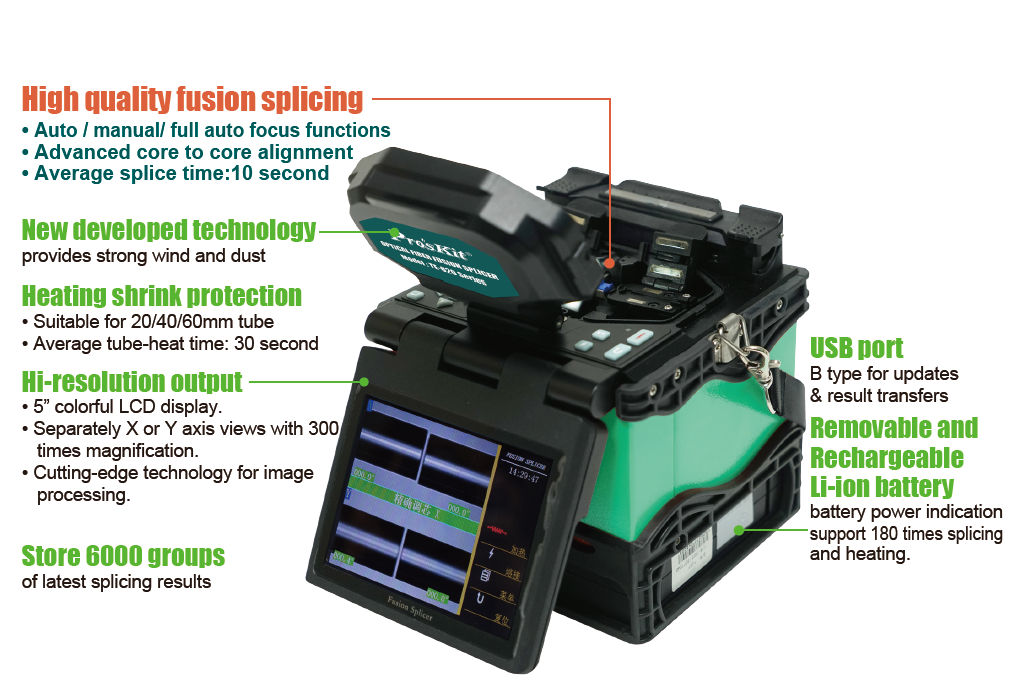

The fiber splicing machine is a new fully-digital design with 5” LCD colorful display, provide the latest core to core alignment technology, features 10Sec. Accurate splicing of fiber optic cable and 30 Sec. Quick tube-heating shrink
| Model No. | TE-8202F | |
| Applicable Fibers | SM, MM, NZDS, EDF | |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | |
| Splice Time (sec.) | 10 sec. (for SM fiber) | |
| Return Loss | ≥60dB | |
| Diameter of fiber optic | Cladding diameter:80-150μm , Coating diameter:100-1000μm | |
| Tension Test | 2.0N(200gf)(Standard) | |
| Splicing Program | 50 groups | |
| Heat Shrinkable Tube | 20mm, 40mm, 60mm | |
| Memory Capacity | 6000 memories | |
| Battery low indication | 4pcs led light indication | |
| Environmental Conditions | -10∼+50ºC (operation temperature),0∼95% RH(humidity), 0∼5000m(altitude) | |
| Standard Package | Fusion splicing machine, Fiber cleaver, Fiber stripper, Leak proof dispenser, AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs, Cooling tray, Quick reference guide, Carrying case with carrying strap |
|
| Power Supply | AC adaptor: INPUT:100-240V、50/60Hz、2A，OUTPUT: DC15V、5A | |
| Standard plug | F type | |
| Battery | 11.1V 5.2AH | |
| Dimensions | 130(W) x 135(D) x 130(H) mm | |
| Weight | 2480g (battery included) | |
- The splicing machine is a new fully-digital design with 5” LCD colorful display, provide the latest core to core alignment technology, features 10Sec.
- Accurate splicing and 30 Sec.
- Quick tube-heating shrink.
