Features
PC link system

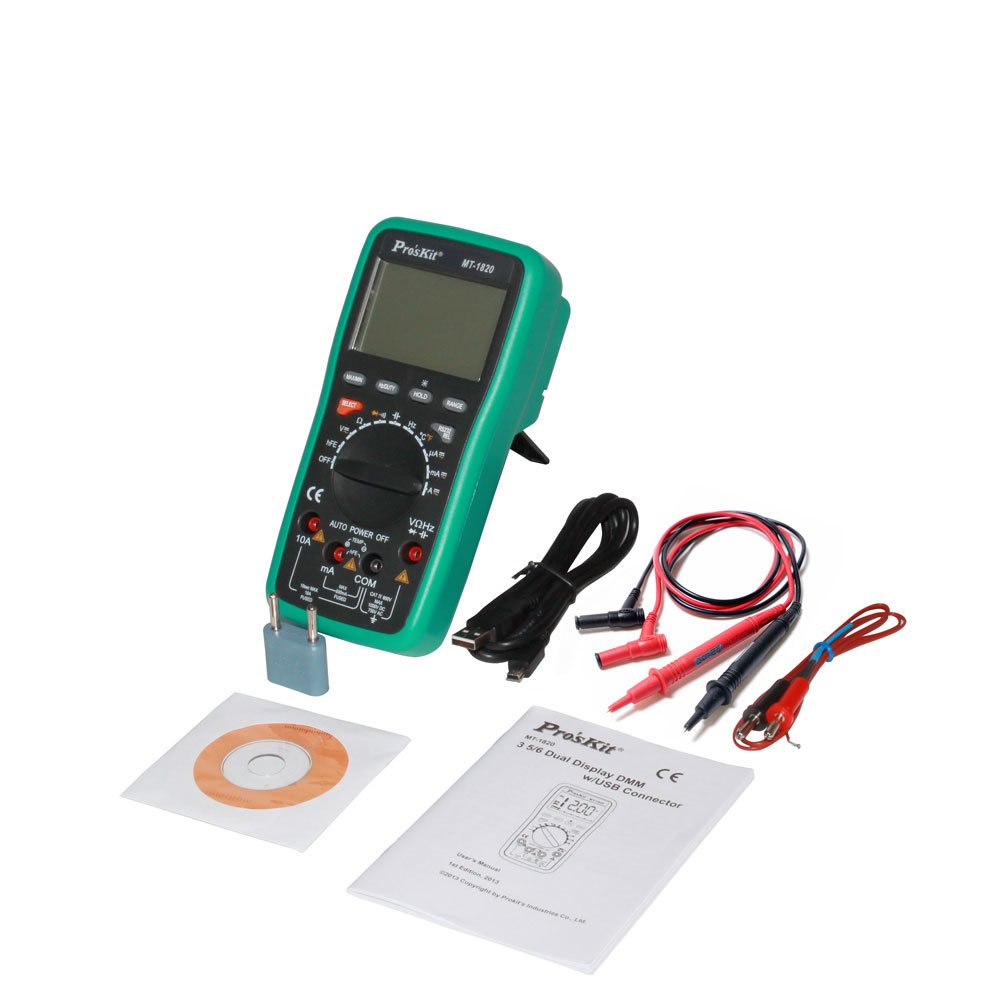

Comes with USB connector allows connecting to PC for monitoring measuring data and records.

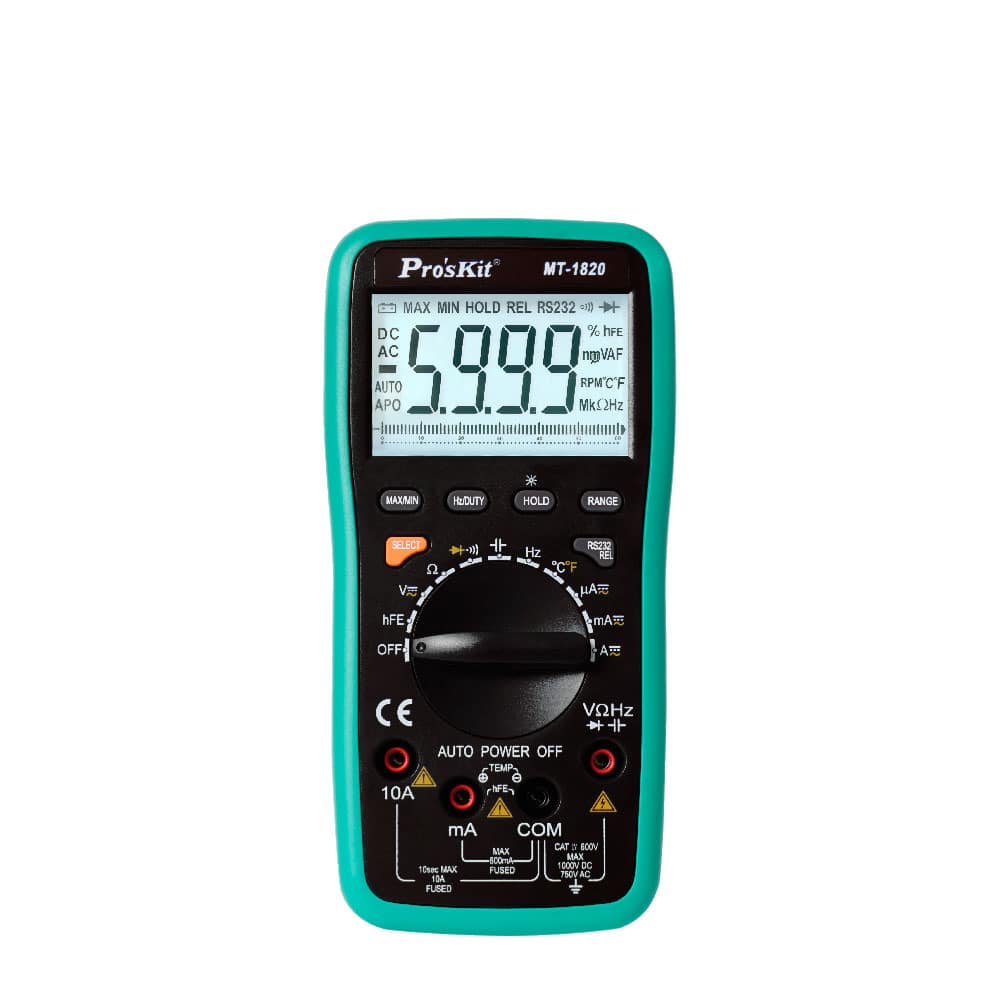

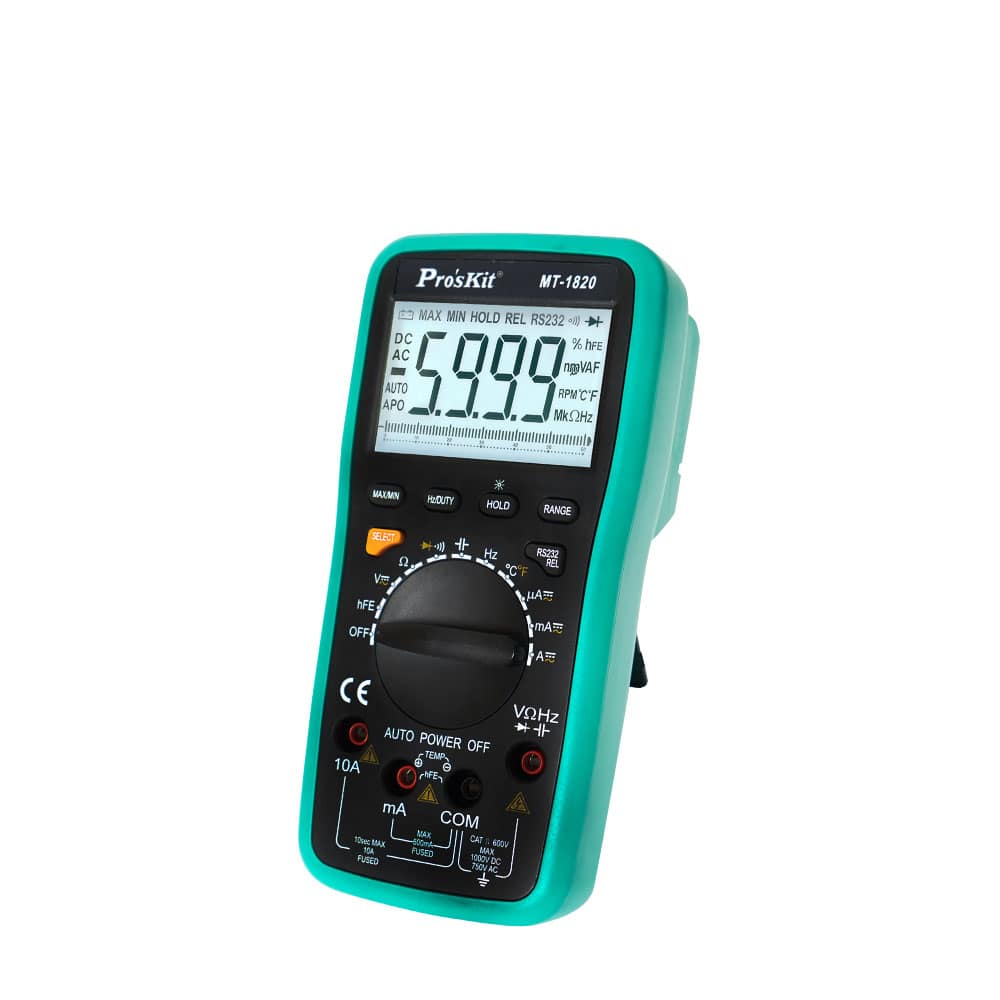

Dual Display with analog bargraph
Enabling user to check intuitively changes in the measured signal as an analog meter
Simple and Intuitive Operation
Comes with a backlit, 3 5/6 digits 5999 counts and auto range functions provide accurate, easy to use and great to understand reading.
Versatile, safe and Accurate
All of its inputs are protected to CE, CATIII 1000V and CAT IV 600V safety rated and overload protection ensures uninterrupted operation and long life.
Extra functions
Duty cycle, relative reference, Max/Min hold, data hold, auto power off, low battery indication.
Specification | |
DCV | 600m/6/60/600V ±(0.5%+4d), 1000V ±(1.0%+6d) |
ACV | 6/60/600V ±(0.8%+10d), 750V ±(1.0%+10d) |
DCA | 600μ/6000μA ±(1.0%+10d), 60m/600mA ±(1.0%+10d), 6/10A ±(1.2%+10d) |
ACA | 600μ/6000μA ±(1.5%+10d), 60m/600mA ±(1.5%+10d), 6/10A ±(2.0%+15d) |
Resistance | 600Ω ±(0.8%+5d), 6k/60k/600k/6MΩ ±(0.8%+4d), 60MΩ ±(1.2%+10d) |
Frequency | 100/1000Hz ±(0.5%+4d), 10k/100kHz ±(0.5%+4d), 1M/30MHz ±(0.5%+4d) |
Capacitance | 40nF±(5%+30d), 400n/4μ/40μF±(3.5%+8d) 200μF±(5.0%+10d) |
Temperature | -20~400˚C(0~750˚F) ±(1.0%+5d), 400~1000˚C(750~1832˚F) ±(1.5%+15d) |
Continuity with buzzer |
Y |
Diode test | Y |
Transistor test | Y |
Power source | AAA(1.5V)×2pcs (Not included) |
Size | 192×95×48 mm |
Individual Packing | Color box |
