PE-LCR520B : Multi-function LCR

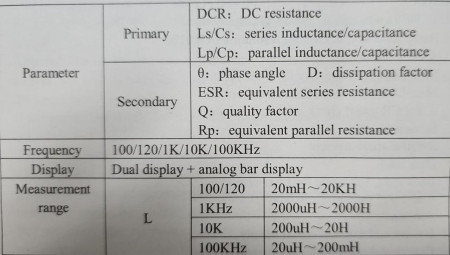

This multi-function LCR  is a portable instrument designed with microprocessor control and low power consumption. It can measure 6 basic parameters: inductance L, capacitance C, AC resistance R, DC resistance DCR dissipation factor D and quality factor Q.

The instrument can easily communicate with PC and realize remote control through USB interface.With battery external power supply, the meter is ideal for field and portable applications, such as component inspection at fixed place, and immediate measurement by buyer and maintenance personnel.

Features

• 19,999/1,999 counts dual LCD display.
• Basic accuracy: 0.3% with resolution of 0.01%.
• Analog bar display.
• Measurement frequency up to 100KHz
• Mini-USB interface (USB model only)
• AutoLCR smart check and measurement
• Sorting function
• Relative measurement
• Data hold
• Back light, full angle for LCD display
• 4-terminal measurement configuration
• Automatic power off
• Battery and external power supply
• Battery voltage indication
