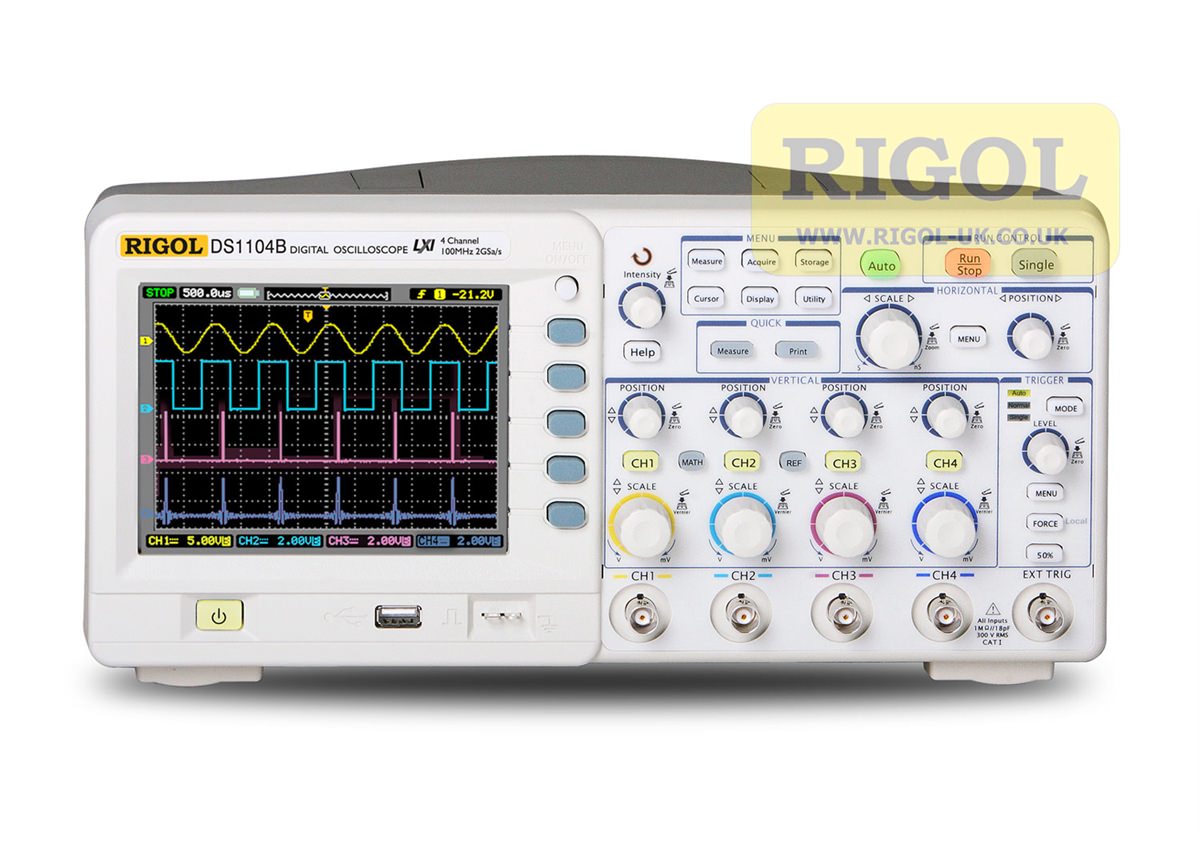

DS-1104B: Lx1 Class C Complaint Digital Storage Oscilloscope 4 Analog Channels and 5.7

Features

• 100 MHz Bandwidth
• 16 kpts(half channel), 8 kpts(each channel) Memory Depth
• 4 channels + external trigger Channels
• 2 GSa/s(half channel), 1 GSa/s(each channel) Real-time Sample Rate
• 25 GSa/s Equivalent Sample Rate
• Conform to LXI consortium instrument standard class C, which enable to create and reset testing system fast, economically and efficiently
• Abundant trigger types: Edge, Pulse Width, Video, Pattern and Alternative triggers
• Unique adjustable trigger sensitivity enables to meet different demands
• Enable to measure 22 types of wave parameters and track measurements via cursor automatically
• Unique waveform record and replay function
• Fine delayed scan function
• Built-in FFT function, hold practical digital filters
• Pass/Fail detection function
• Math operations available to multiple waves
• Powerful PC application software UltraScope
• Standard configure interface: USB Device, Dual USB Host, LAN, support U disk storage and PictBridge print standard
• Support for remote command control
